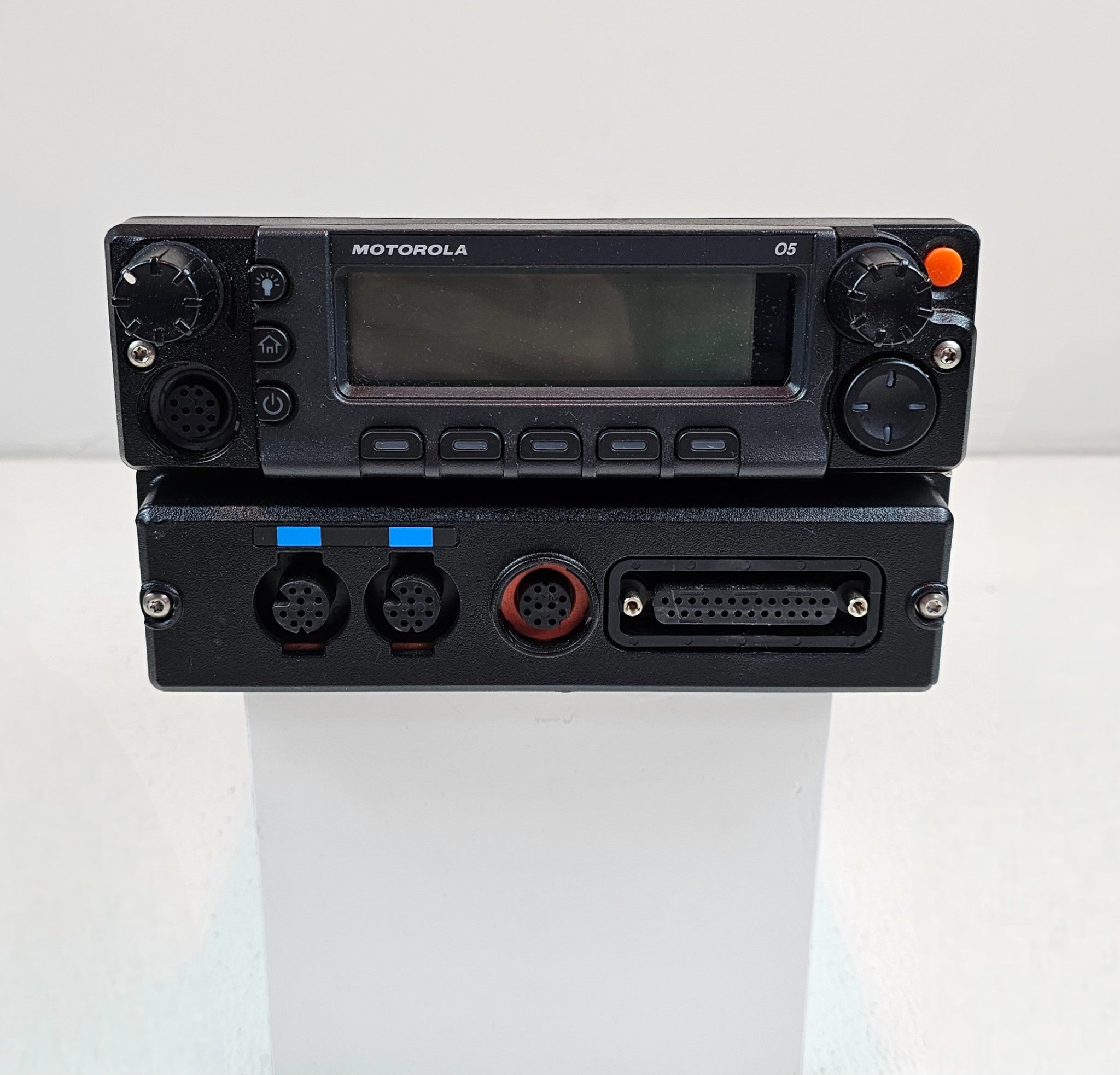

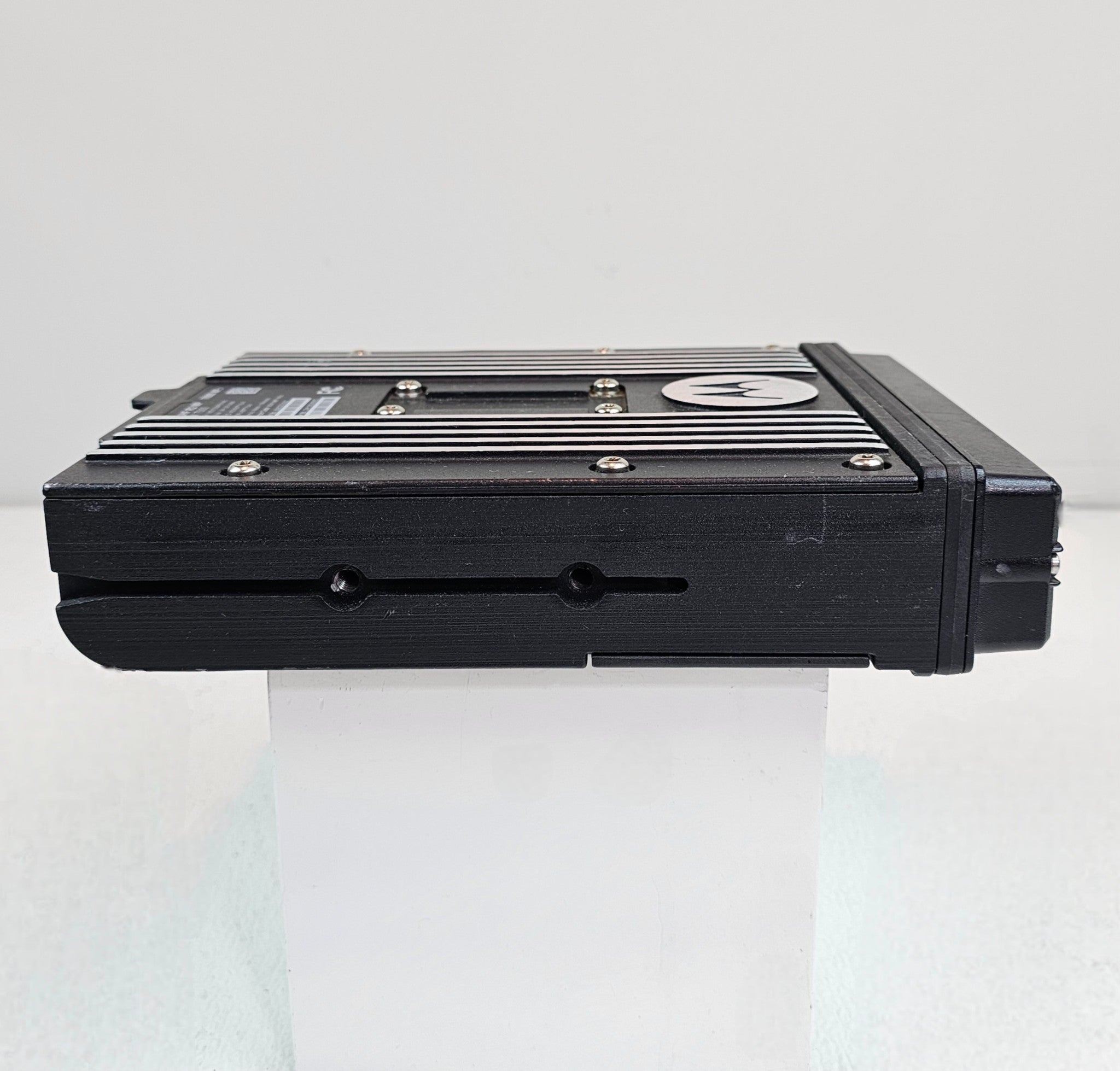

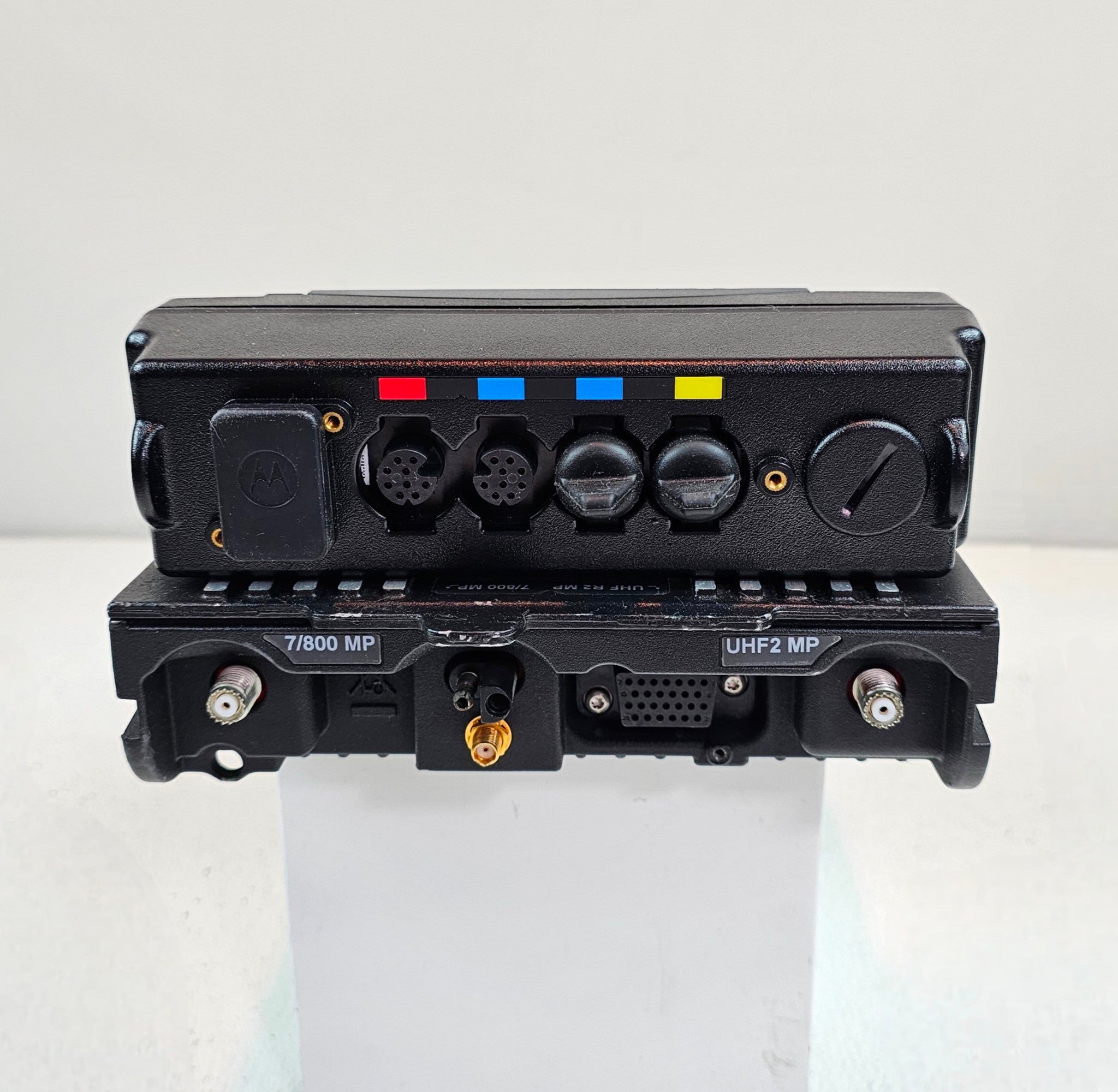

Motorola APX7500 Mobile Radio Remote Mount Configuration M30TSS9PW1AN

Description

The Motorola APX7500 is a high-performance, dual-band mobile radio designed for mission-critical communications. This unit features P25 Phase 1 and 2 operation, integrated GPS, and robust AES/ADP encryption capabilities for secure, reliable connectivity. It includes all necessary mounting hardware, a microphone, and a power cable for immediate installation.

Model Number: M30TSS9PW1AN
Frequency Bands: 450-520 MHz, 764-870 MHz
Channels: Up to 1250
Power Output: UHF 45W, 700-800MHz 35W
Modulation: 12.5/25 kHz Switchable
Operation Modes: P25 Phase 1 & 2, Analog FM
Encryption: AES and ADP
Power Supply: 13.8V DC
Dimensions: 2.1″ H x 7.0″ W x 8.0″ D
Weight: 5.3 lbs
