Description

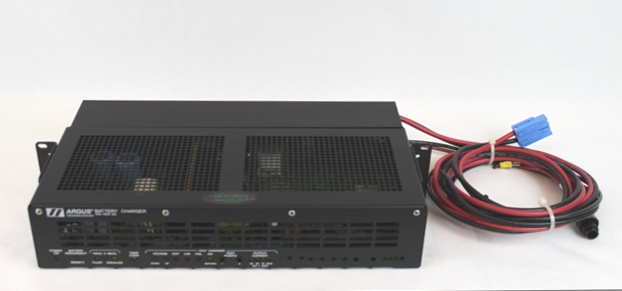

The Argus 010-519-20 Battery Revert Charger is designed for use with MTR2000 and Quantar 12 VDC repeaters, corresponding to Motorola part number L1883. It delivers dependable backup power management and charging capability in communication repeater environments.

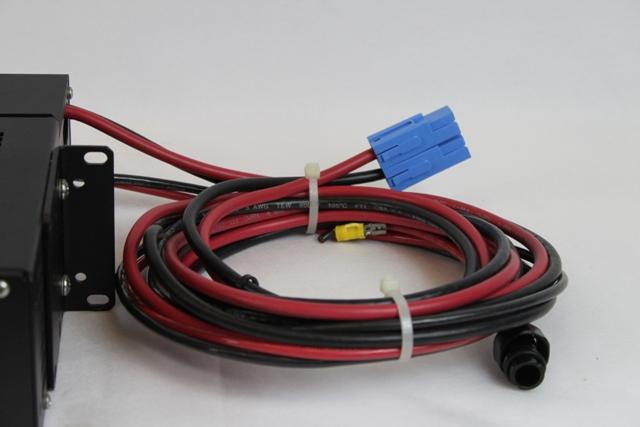

This unit provides a continuous power output of 250 Watts and a 20 ADC current rating, featuring integrated protection such as current limiting circuitry, output fuses, over-voltage shutdown, battery reversal protection, and ESD resistance up to 15kV. Standard DC cables are included.
| Brand | Argus |
| Model Number | 010-519-20 |
| Compatible Repeaters | Motorola Quantar, MTR2000 |
| Equivalent Part Number | Motorola L1883 |
| System Voltage | 12 VDC |
| Battery Output Voltage | Float: 12-15 VDC; Equalize: Float + 1.0 V |
| Current Output | 20 ADC |
| Continuous Power | 250 W |
| Protection | Current Limiting, Output Fuses, Over-Voltage Shutdown, Battery Reversal Protection, 15kV ESD |
| System Noise | < 32 dBrnc (Voice Band), < 50mVrms to 10MHz, < 150mVp-p to 100MHz |
| Packaged Weight | 1361 g |
