In Stock

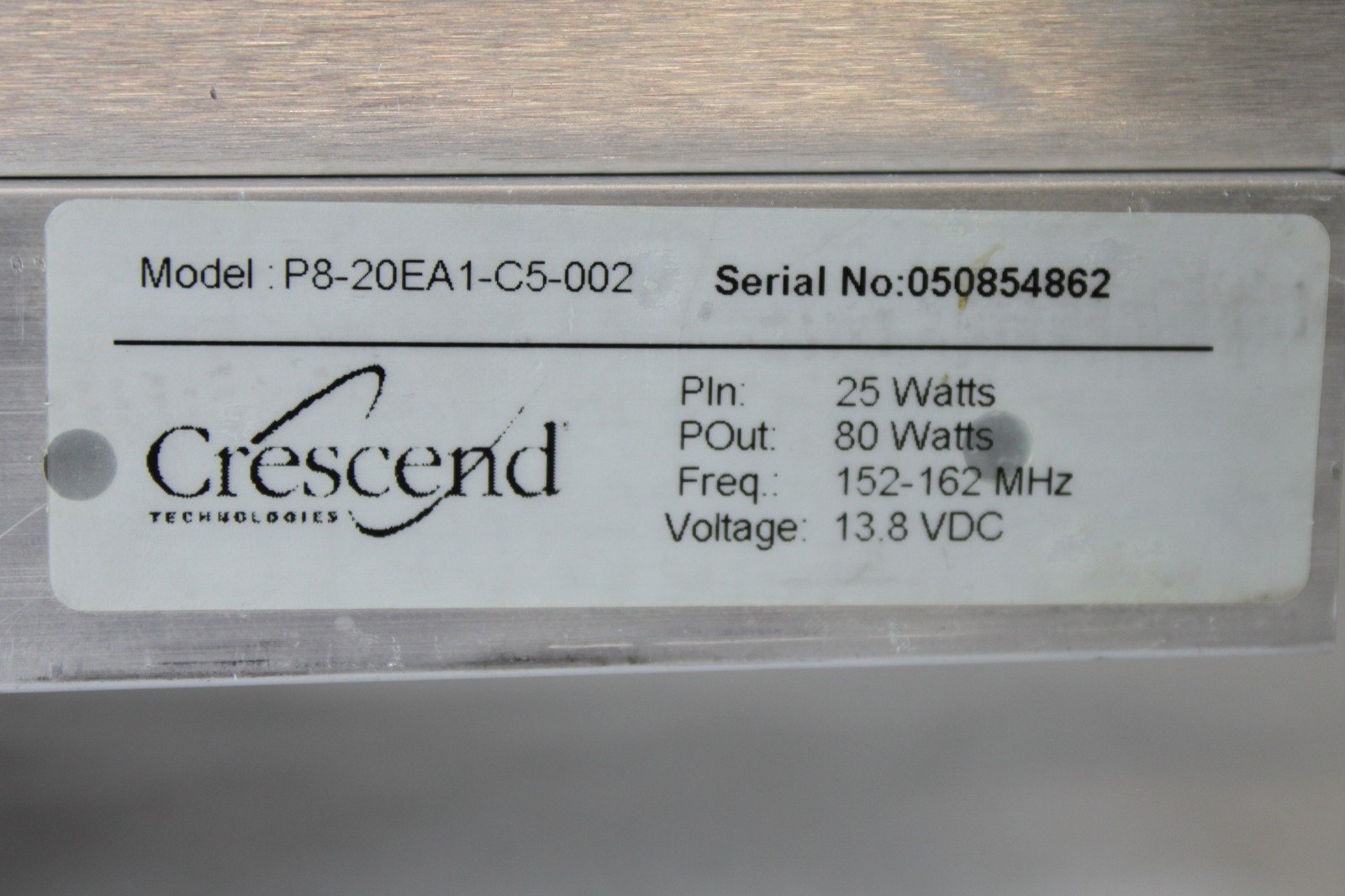

The Crescend P8-20EA1-C5-002 is a high-performance VHF power amplifier designed for reliable radio infrastructure. Engineered for a band split of 152-162 MHz, this unit delivers an 80W output from a 25W input. Each amplifier is thoroughly tested to ensure consistent operation at 80 watts. This model requires a 13.8 VDC power source and features a 100% duty cycle for demanding communication environ
The Crescend P8-20EA1-C5-002 is a high-performance VHF power amplifier designed for reliable radio infrastructure. Engineered for a band split of 152-162 MHz, this unit delivers an 80W output from a 25W input. Each amplifier is thoroughly tested to ensure consistent operation at 80 watts. This model requires a 13.8 VDC power source and features a 100% duty cycle for demanding communication environments.
| Frequency Range | 152-162 MHz |
| Power Output | 80W |
| Power Input | 25W |
| Operating Voltage | 13.8 VDC |
| Current Draw | 23 Amperes |

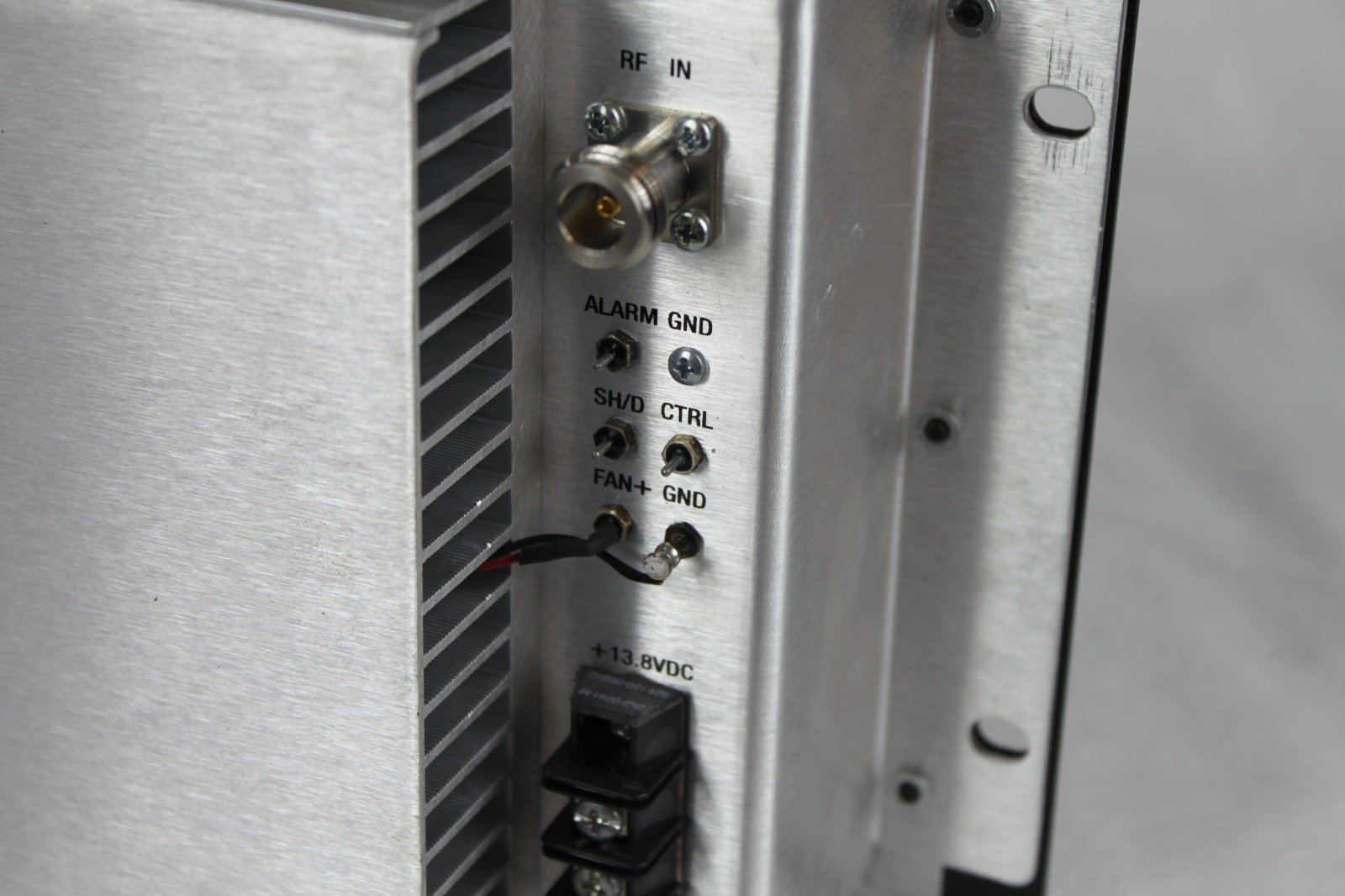

| Connector Type | Type N Female |
| Duty Cycle | 100% |
| Weight | 25 lbs |
|---|---|
| Dimensions | 2.36 × 7.48 × 2.76 in |
| Brand | Crescend Technologies |
