In Stock

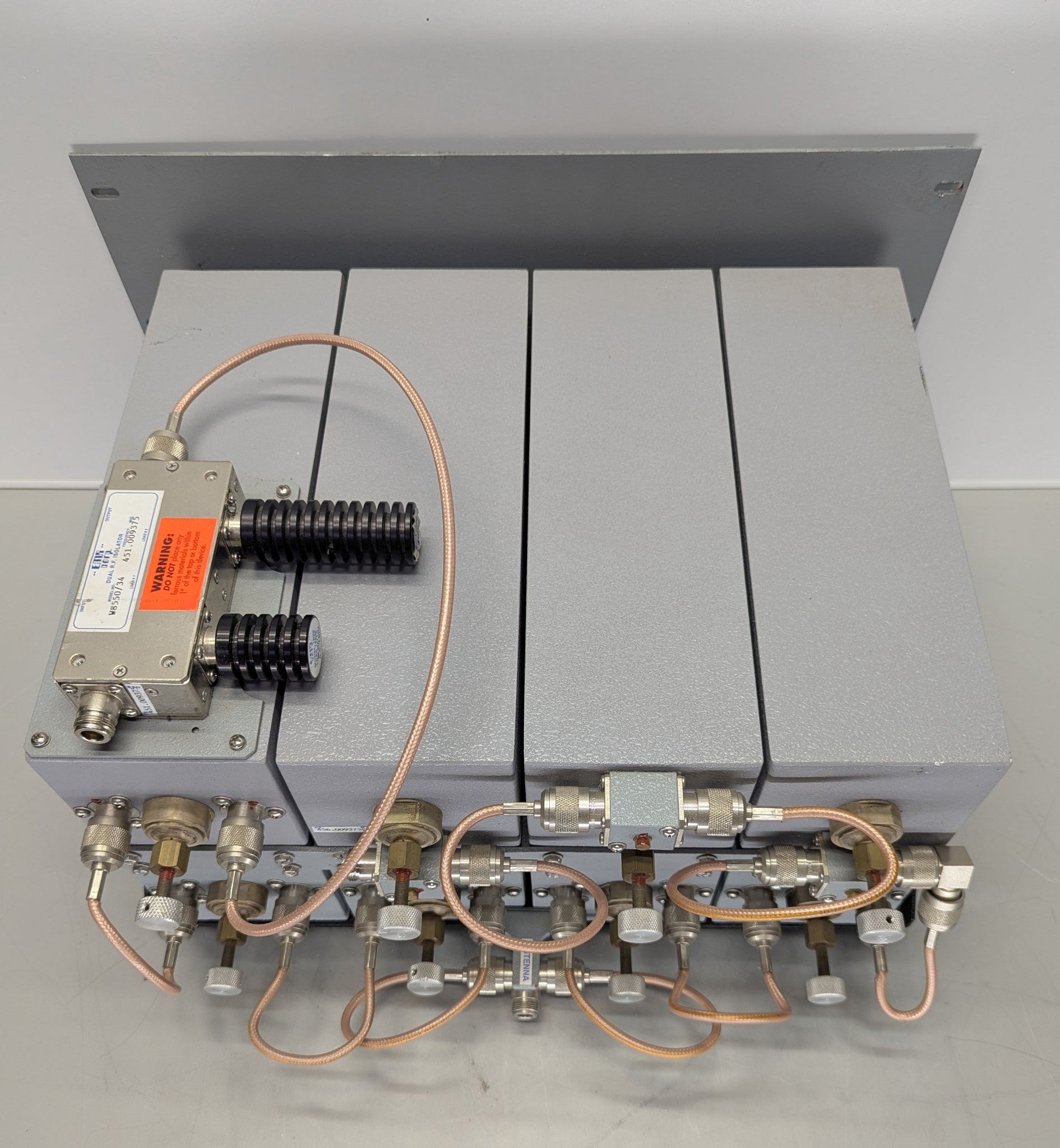

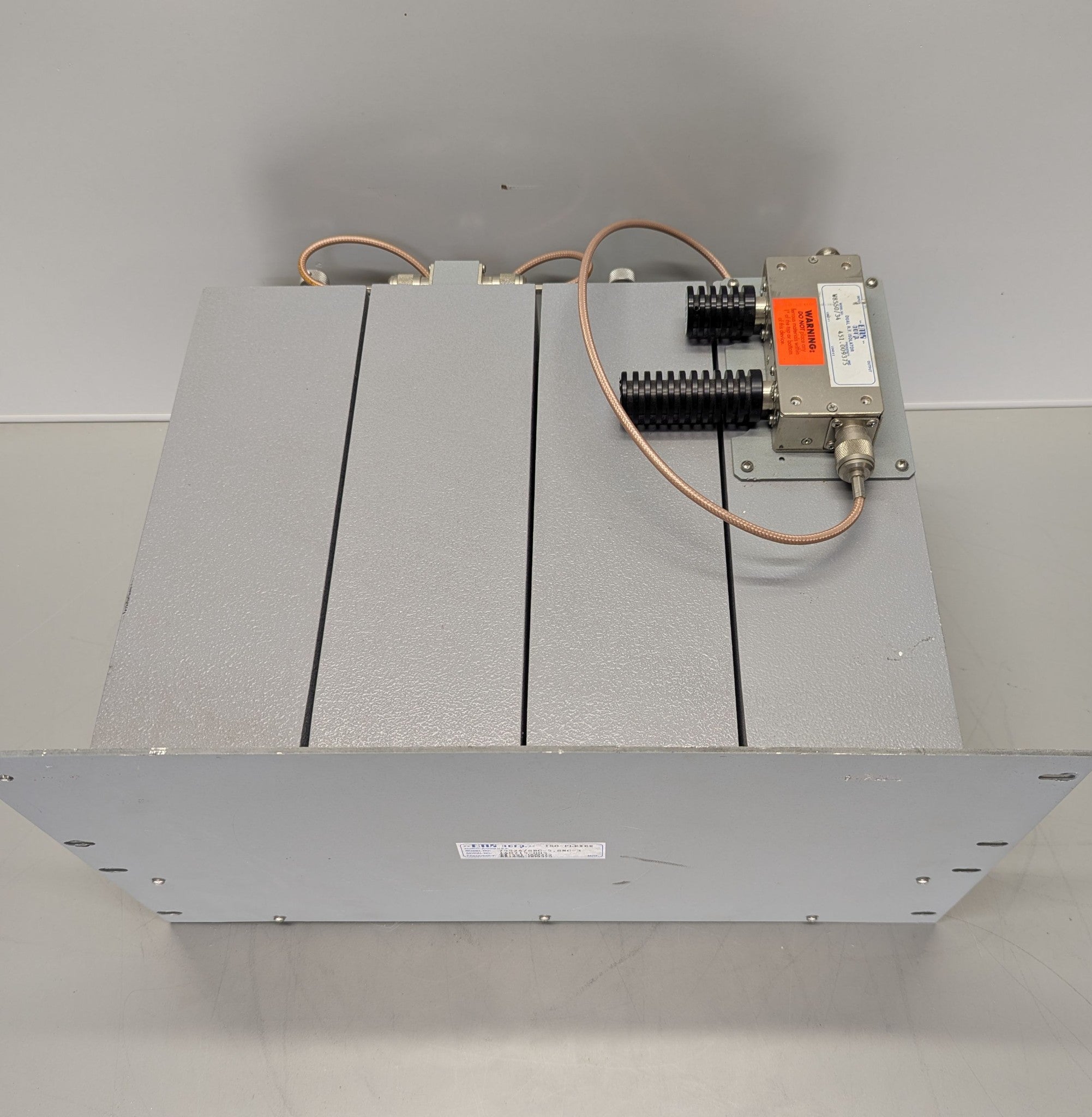

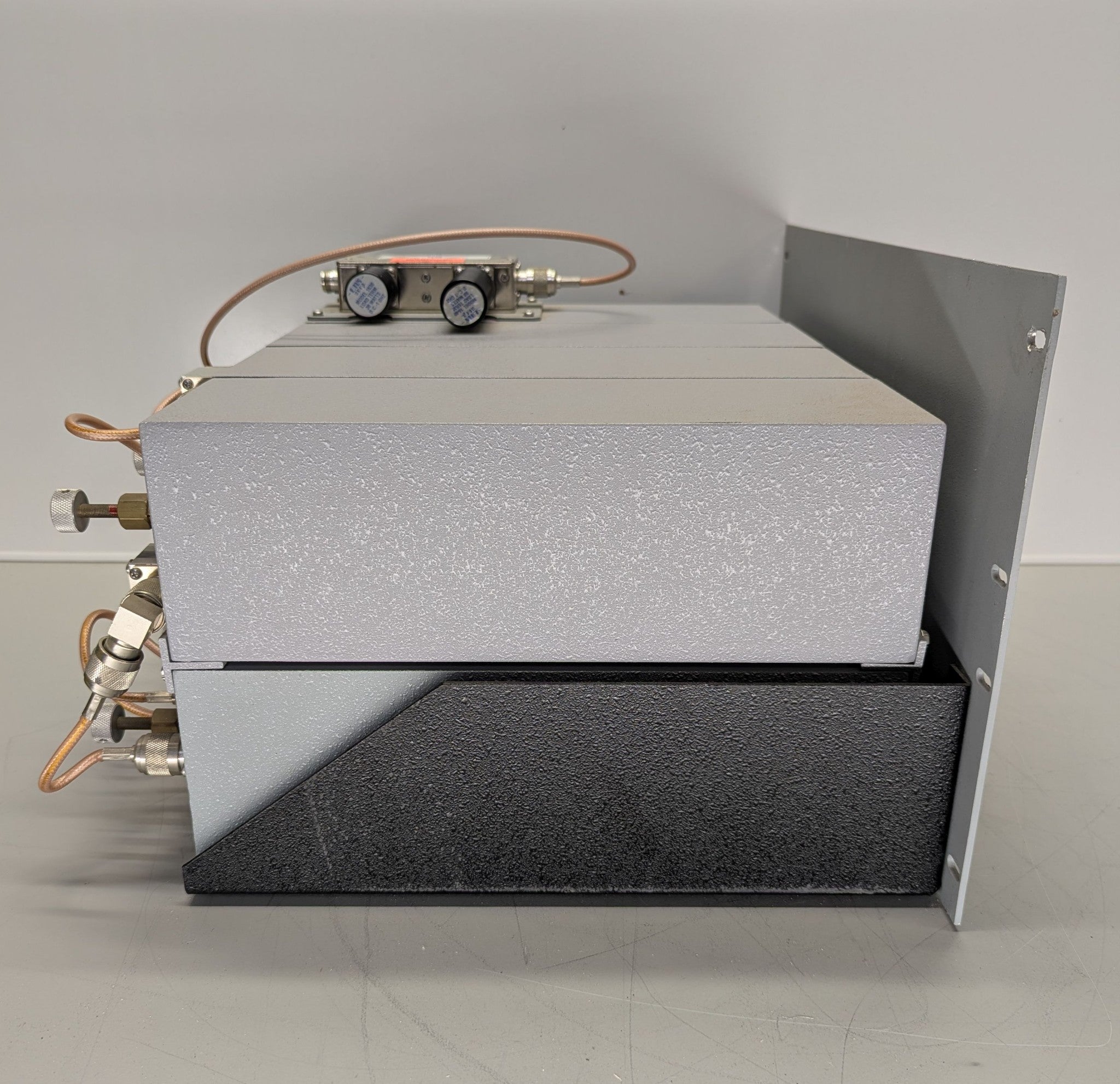

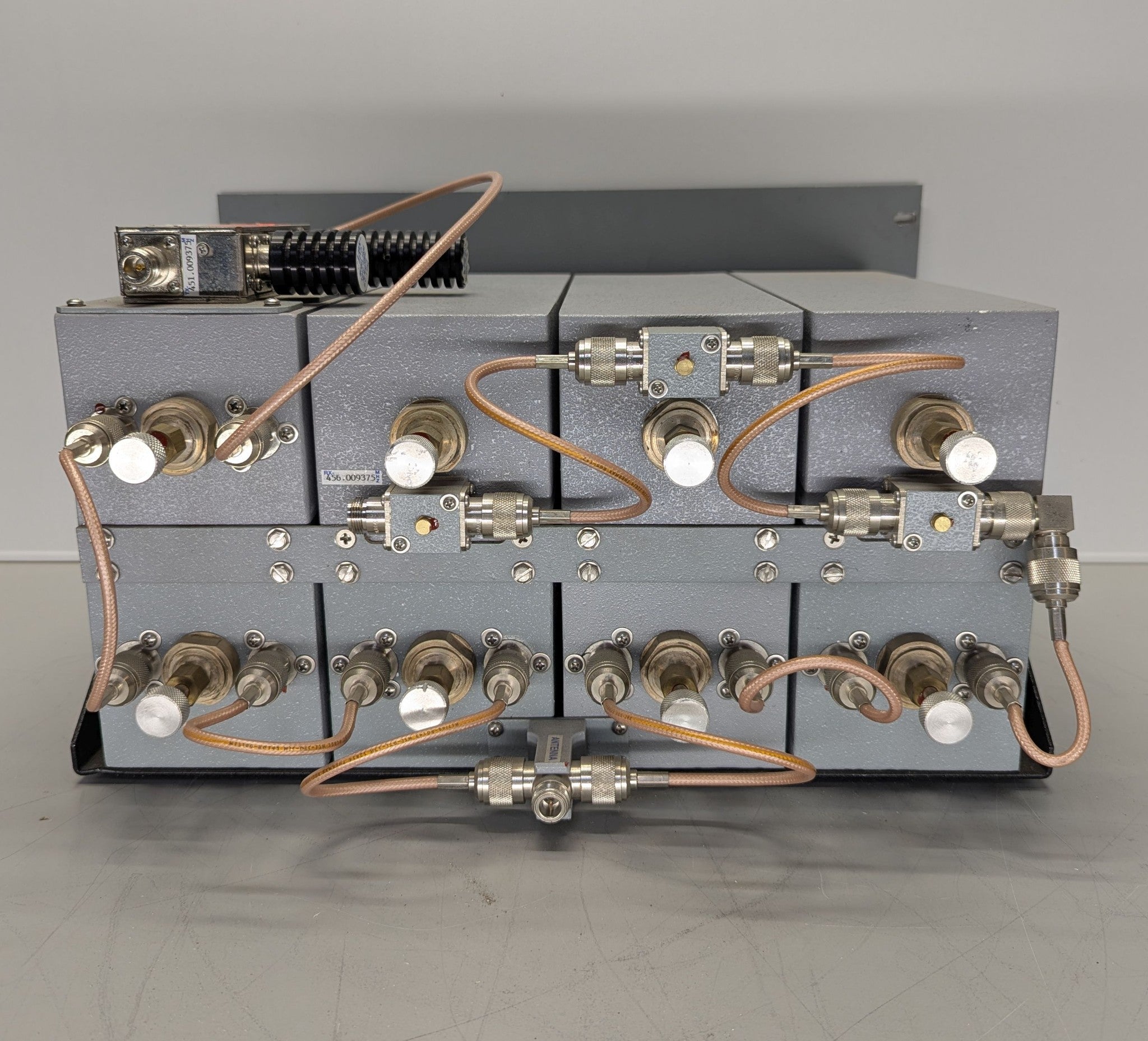

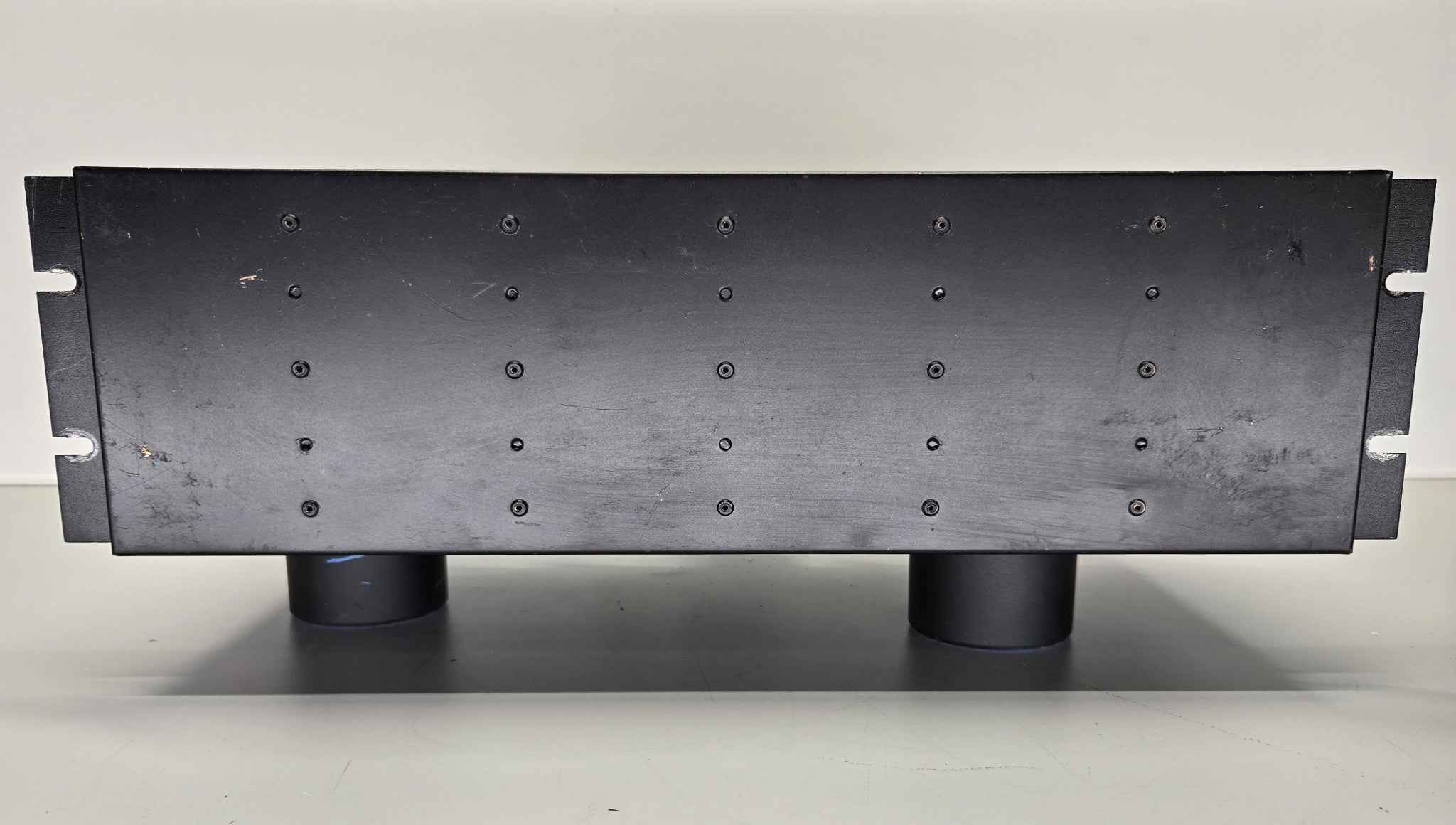

The EMR Iso-Plexer facilitates bi-directional communication by allowing a transmitter and a receiver to share a single antenna. This unit is engineered for reliable signal isolation and performance in demanding radio infrastructure environments.
The EMR Iso-Plexer facilitates bi-directional communication by allowing a transmitter and a receiver to share a single antenna. This unit is engineered for reliable signal isolation and performance in demanding radio infrastructure environments.

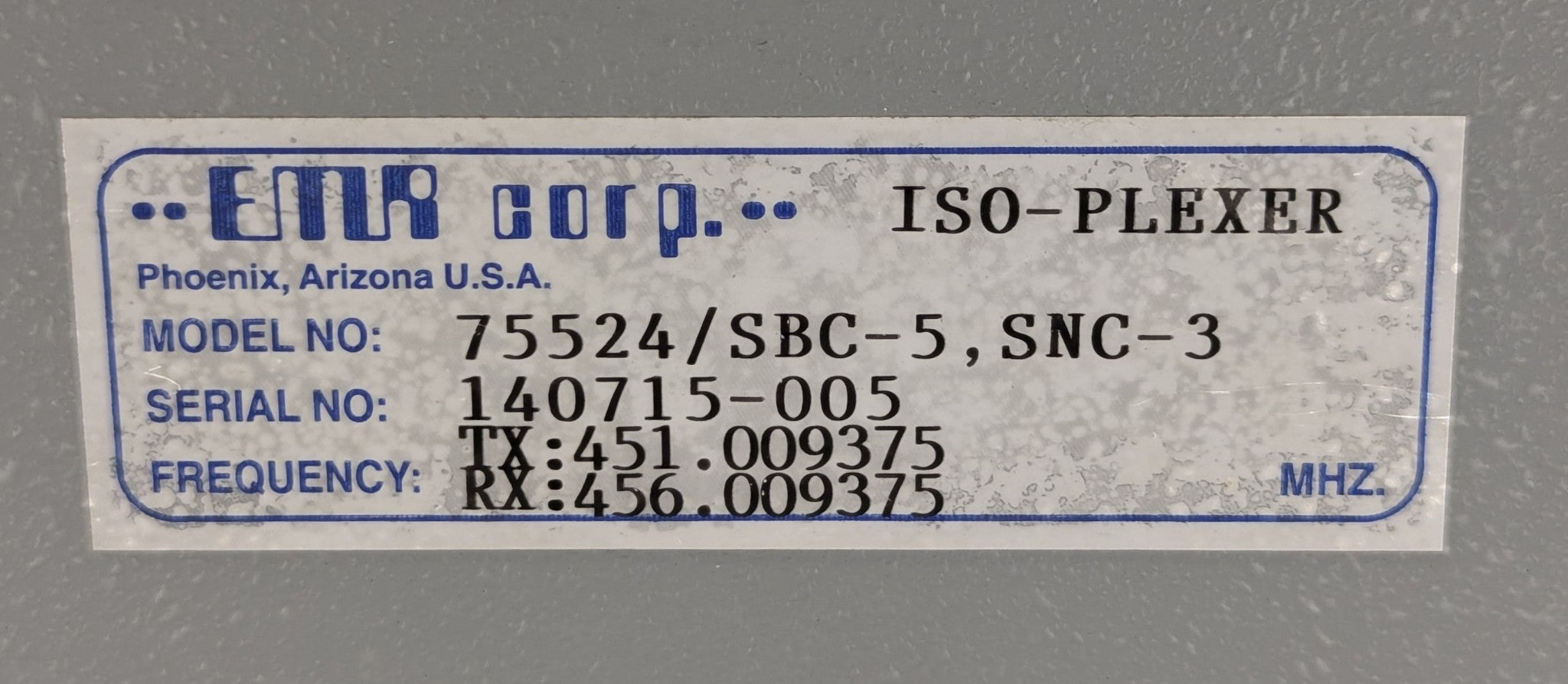

| Model Number | 75524-SB-5, SNC-3 |
| Frequency Range | 440-512MHz |

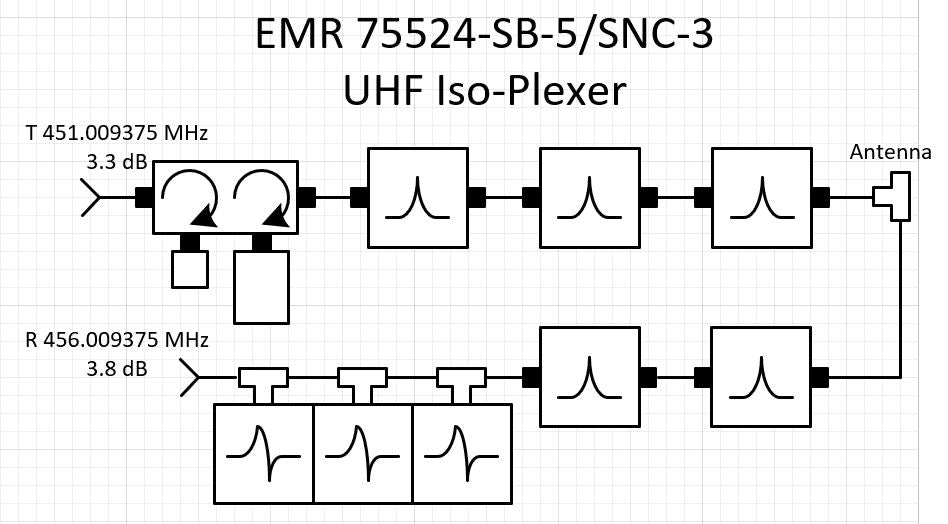

| Cavities | 8-Cavities: Tx–3 Bandpass, Rx–2 BP 3 Pass-Reject |
| Isolation | Tx – 73 dB, Rx – 105 dB |
| Insertion Loss | Tx – 3.3 dB, Rx – 3.8 dB |
| Maximum Power Output | 125W |
| Connectors | N female |
| Weight | 39.99 lbs |
|---|---|
| Dimensions | 6.69 × 7.48 × 4.13 in |
| Brand | Used Radios |
