In Stock

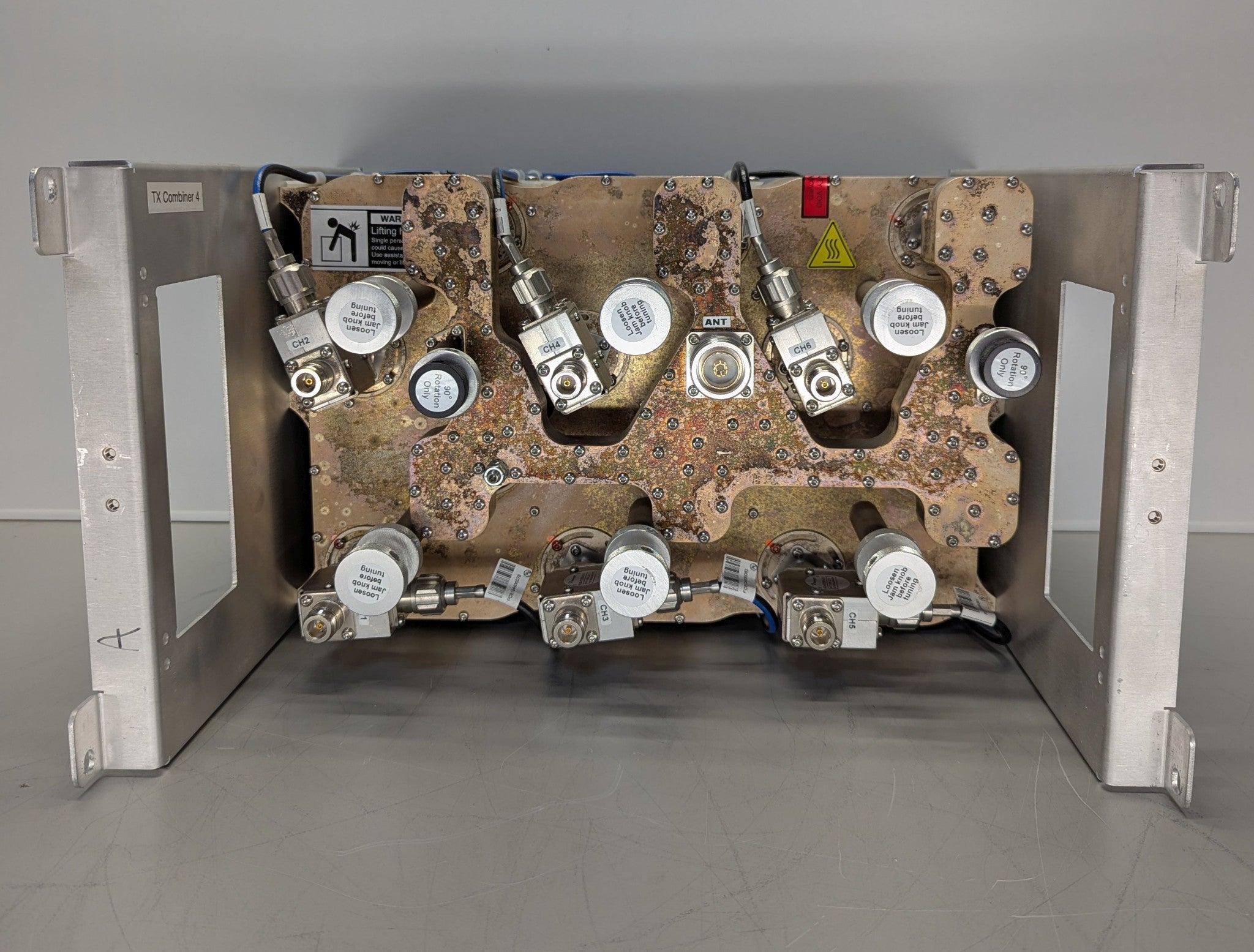

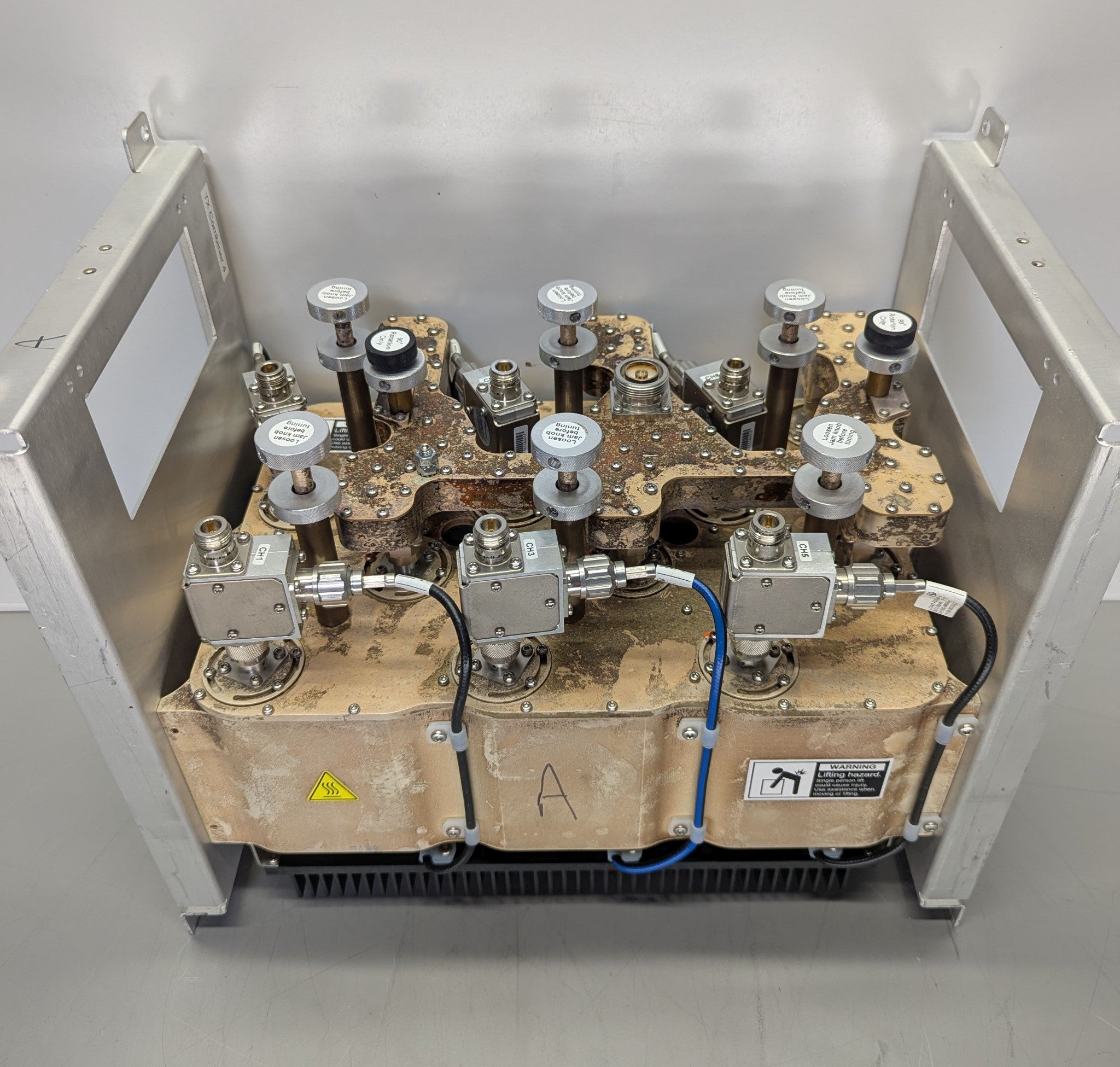

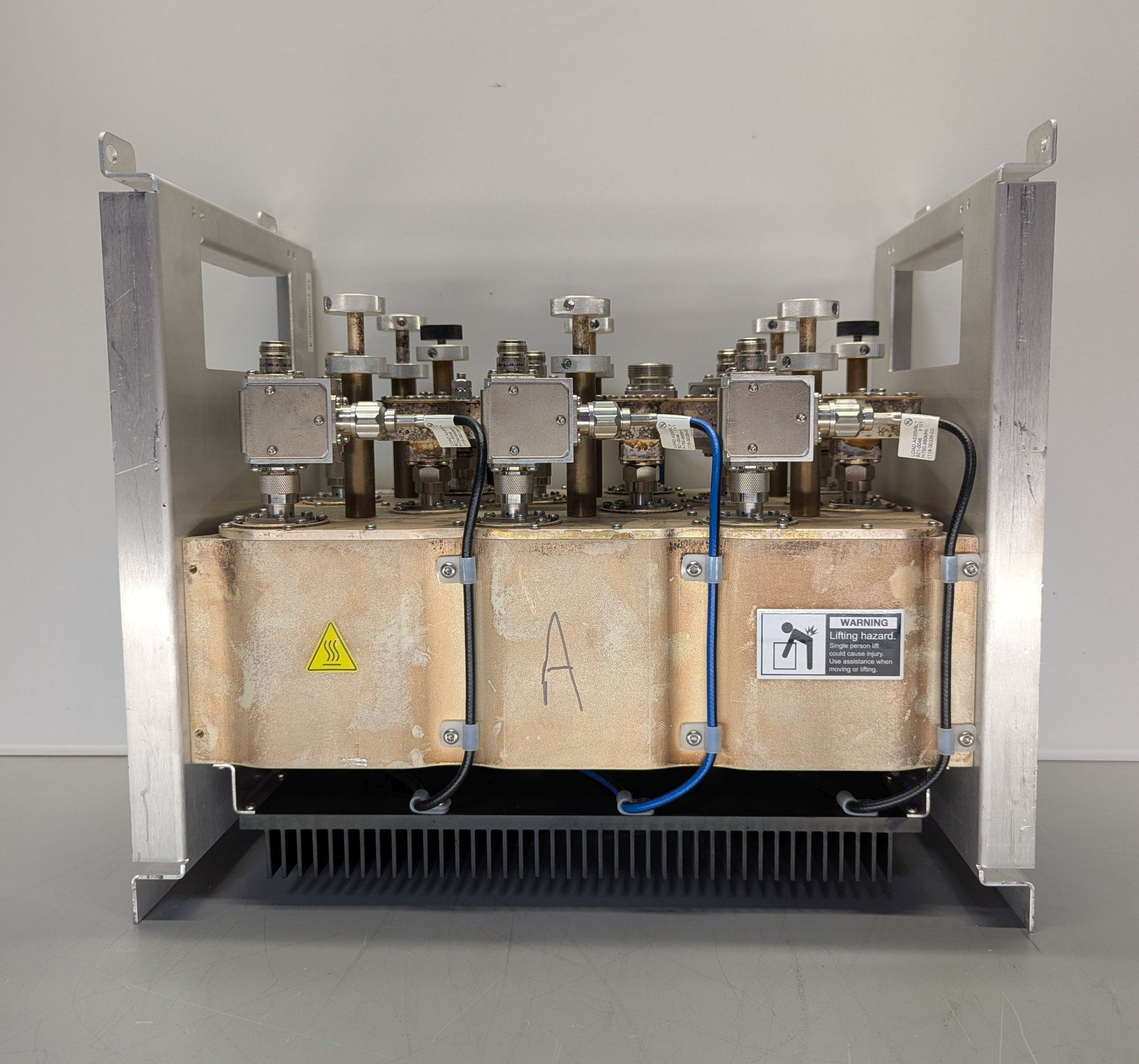

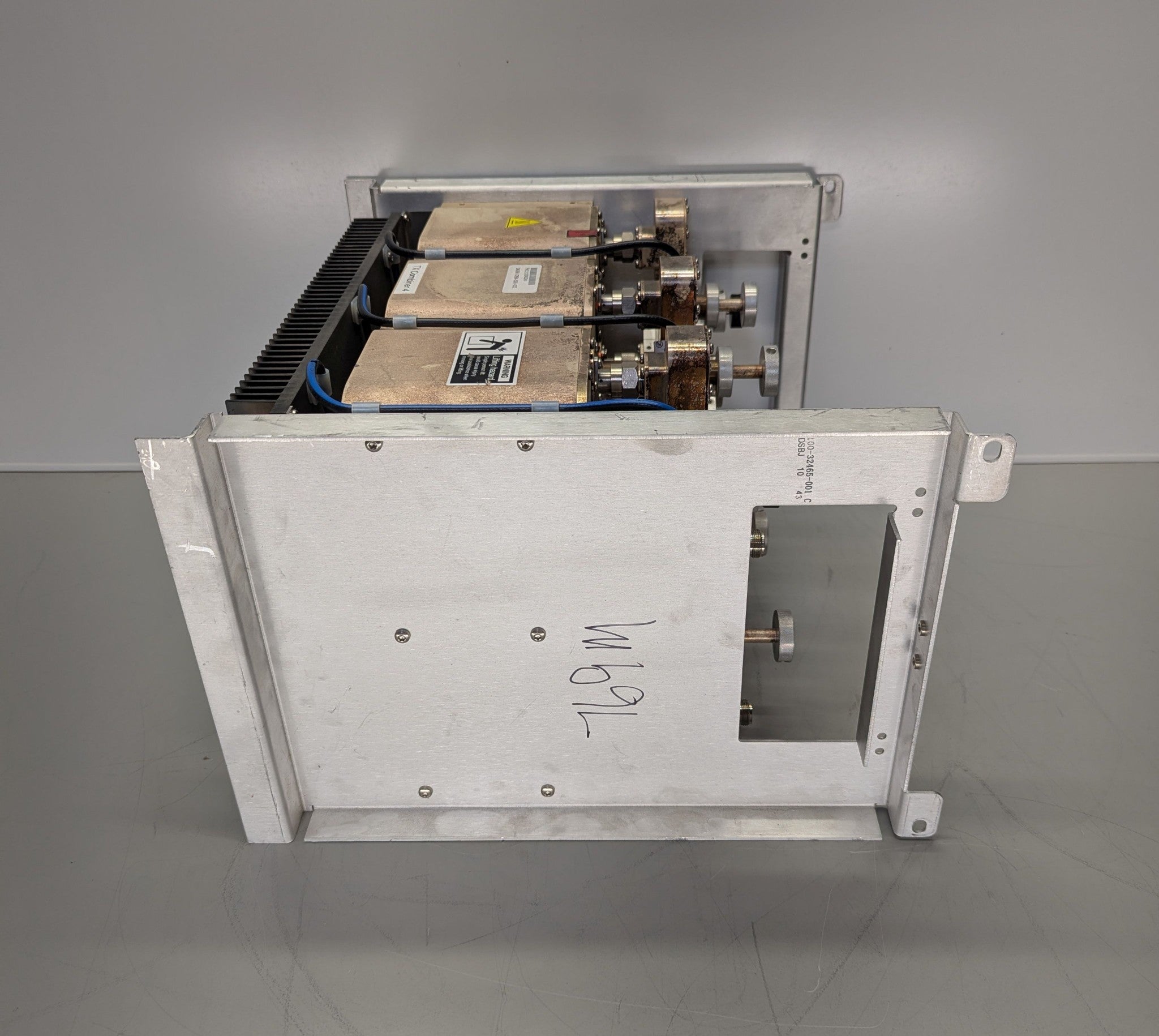

The Filtronic 6-channel ceramic combiner is designed to aggregate multiple transmitters into a single antenna system. This unit, featuring a 764-776 MHz frequency range, is ideal for professional radio infrastructure applications. Each combiner has been salvaged from a functional system and remains in excellent condition. Professional tuning services are available upon request.
The Filtronic 6-channel ceramic combiner is designed to aggregate multiple transmitters into a single antenna system. This unit, featuring a 764-776 MHz frequency range, is ideal for professional radio infrastructure applications. Each combiner has been salvaged from a functional system and remains in excellent condition. Professional tuning services are available upon request.

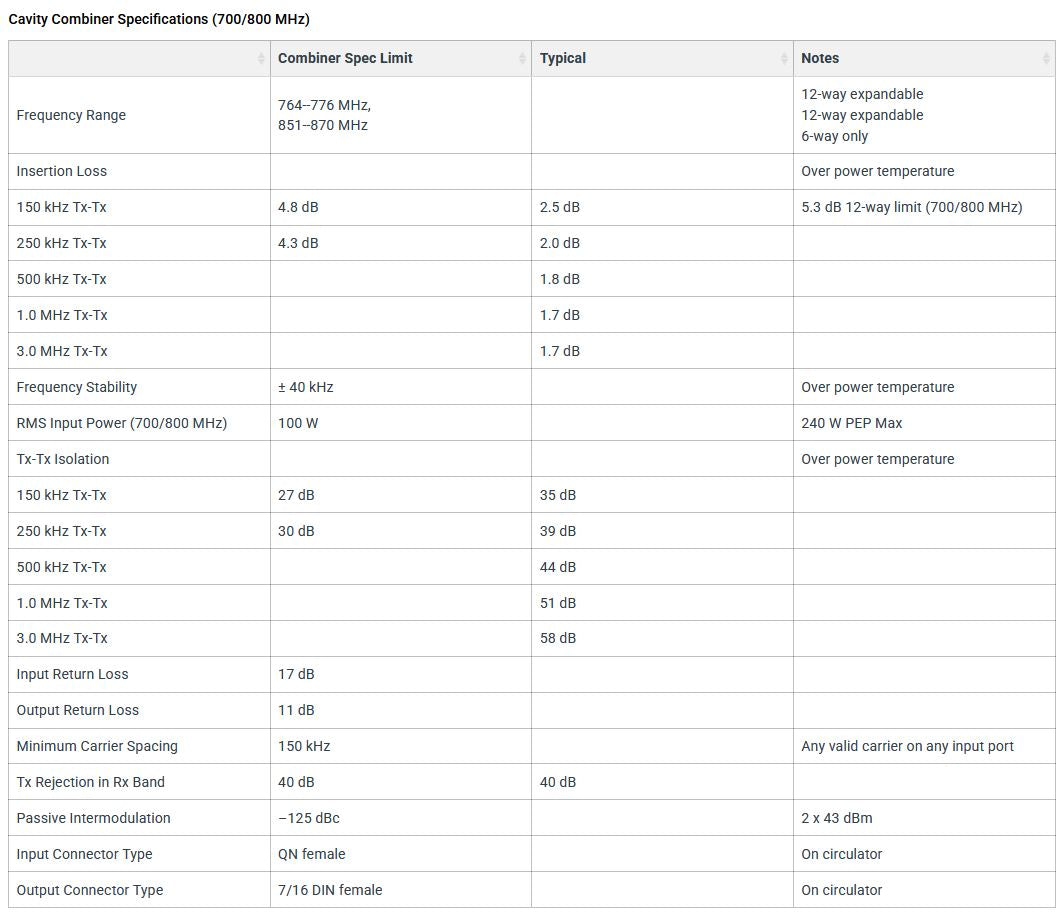

| Model Number | 0184590Y01 |
| Frequency Range | 764-776 MHz |
| RMS Input Power | 100W |
| Insertion Loss 150kHz | 4.8/2.5 dB |
| Insertion Loss 250kHz | 4.3/2.0 dB |
| Isolation 150kHz | 27/35 dB |
| Input Return Loss | 17 dB |
| Minimum Carrier Spacing | 150 kHz |

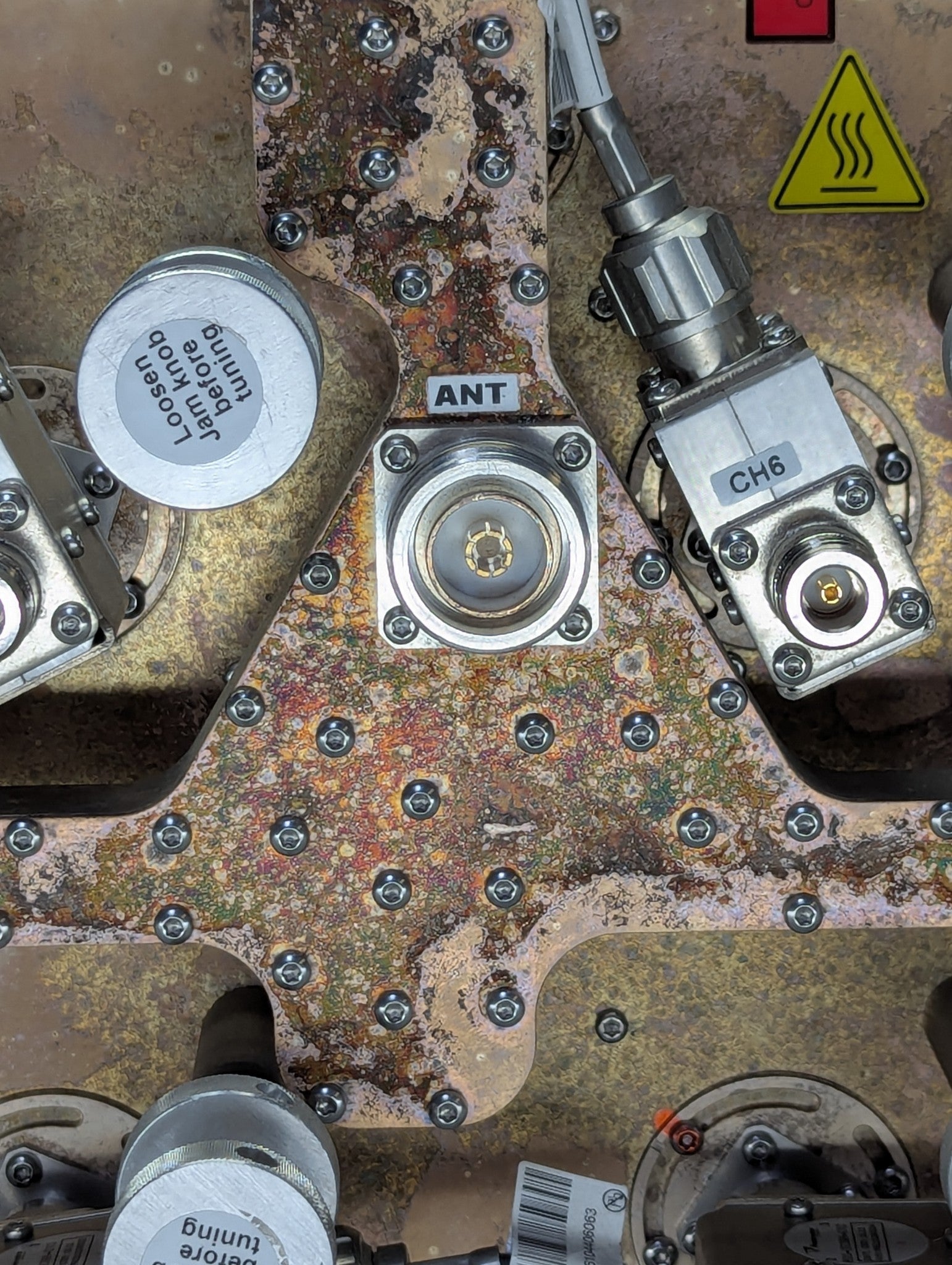

| Connectors | N female in, DIN out |
| Weight | 42.99 lbs |
|---|---|
| Dimensions | 5.91 × 6.69 × 3.94 in |
| Brand | Used Radios |
